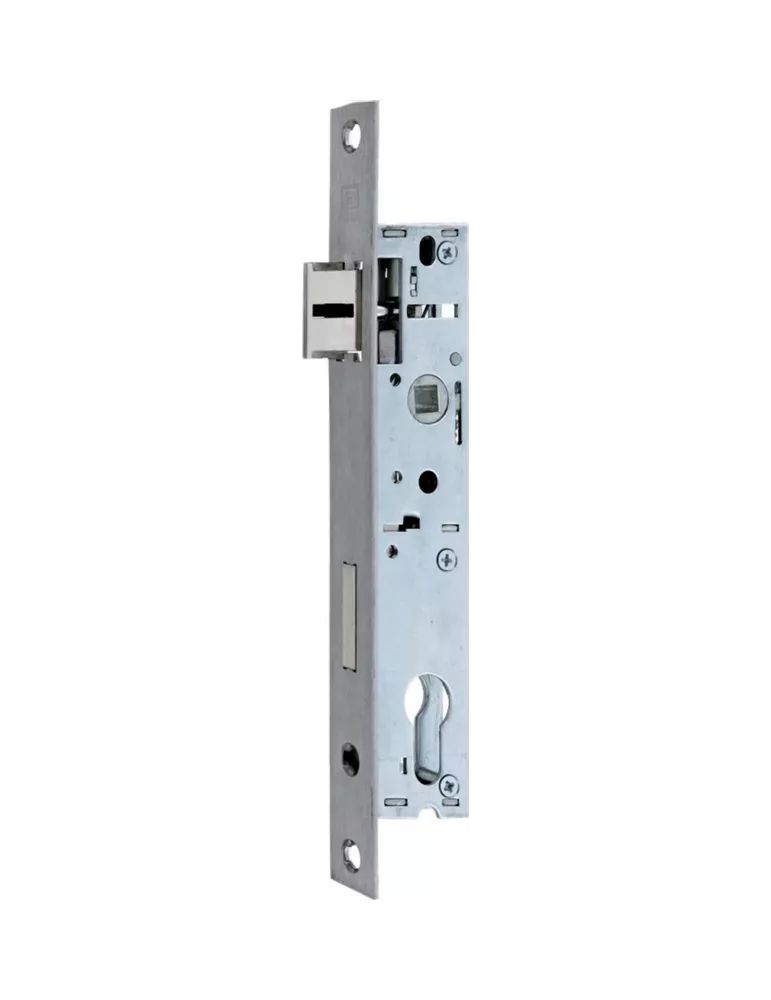

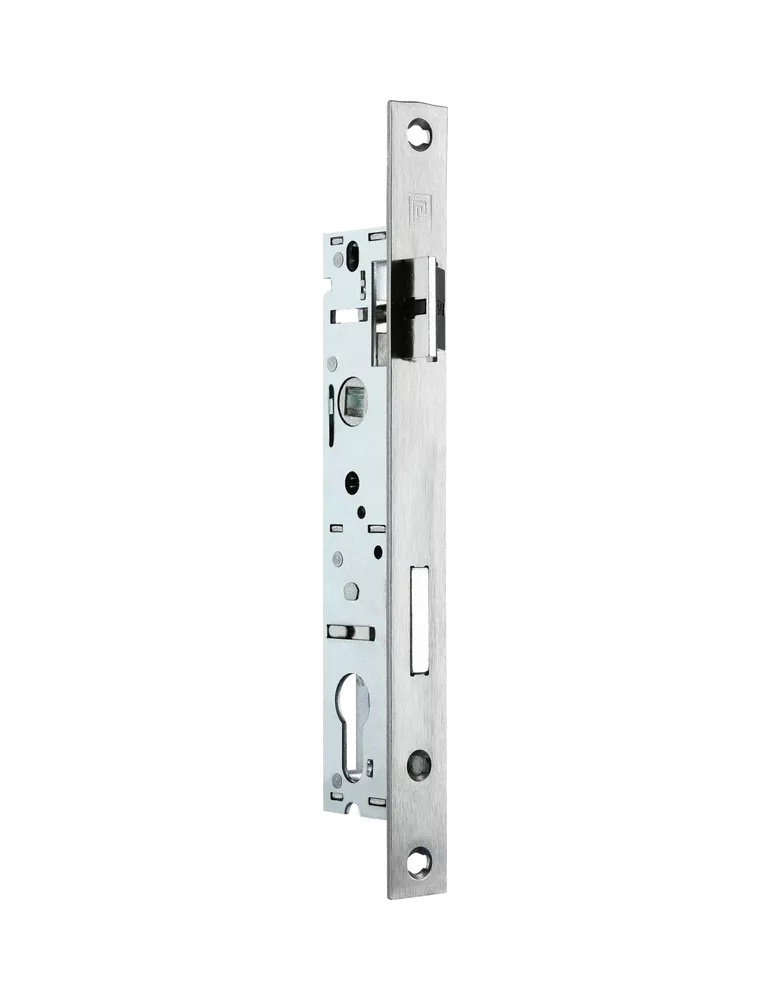

Héraclès
MX-F1783602

Narrow-profile lock, specially designed to fit doors with sleek, modern designs.

  • Reversible latchbolt.

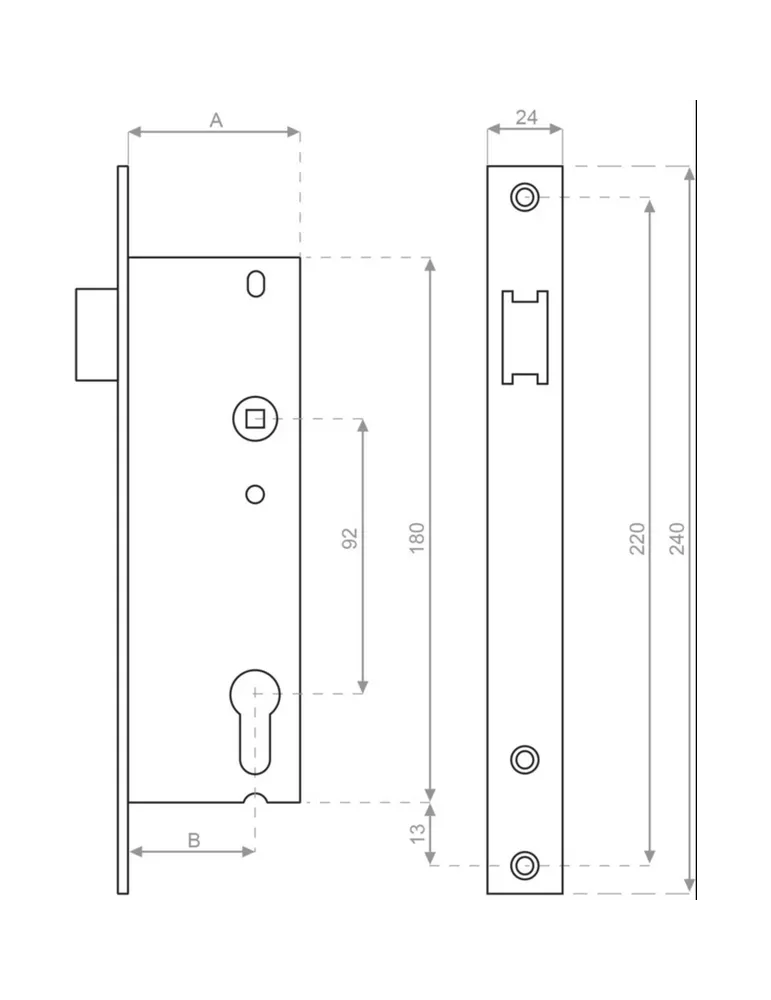

  • Latchbolt width: 22 mm
  • Center distance: 92 mm
  • Mounting center distance: 220 mm
  • Square: 8 mm
  • Faceplate dimensions: 240 x 24 x 2.5 mm
  • 4 case sizes:
    • 21 mm backset: 36 x 180 mm
    • 24 mm backset: 39 x 180 mm
    • 26 mm backset: 41 x 180 mm
    • 30 mm backset: 45 x 180 mm

My order

Amount of options
Price with options
Total
Quantity

Buy in our shop

A2Pro

149, Avenue Henri Barbusse

93700 Drancy

Availability: Within 1 day
  Secure payment via BNP Axepta
  Quick delivery and tracking link
  14 days to return the product
Product Details
  • Héraclès
  • MX-F1783602
  • 21 mm
    24 mm
    26 mm
    30 mm
  • 92 mm
  • 220 mm
  • 8 mm
