Mottura lock 34.323, 2 points with single cylinder
- 2 points: top and bottom, no side bolts
- Single pump, opening by key from inside only
- Key entry 30 mm
- Rod travel mm.20
- Supplied with rod guides, top U-bolt, floor sleeve, outer brass rose, rail.

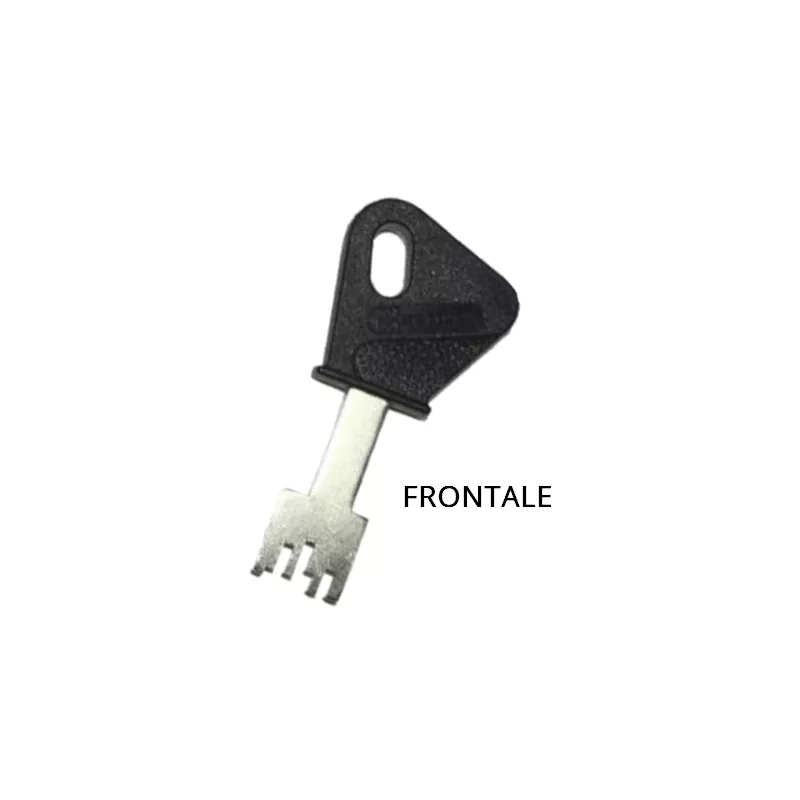

- 3 Frontale keys in a sealed package
| Category | Surface mounted multi point lock |
| Brand | Mottura |
| Manufacturer reference | 34.323 |
| Range | 34 series |
| Number of points | 2 Points |
| Type of joinery | Wood |

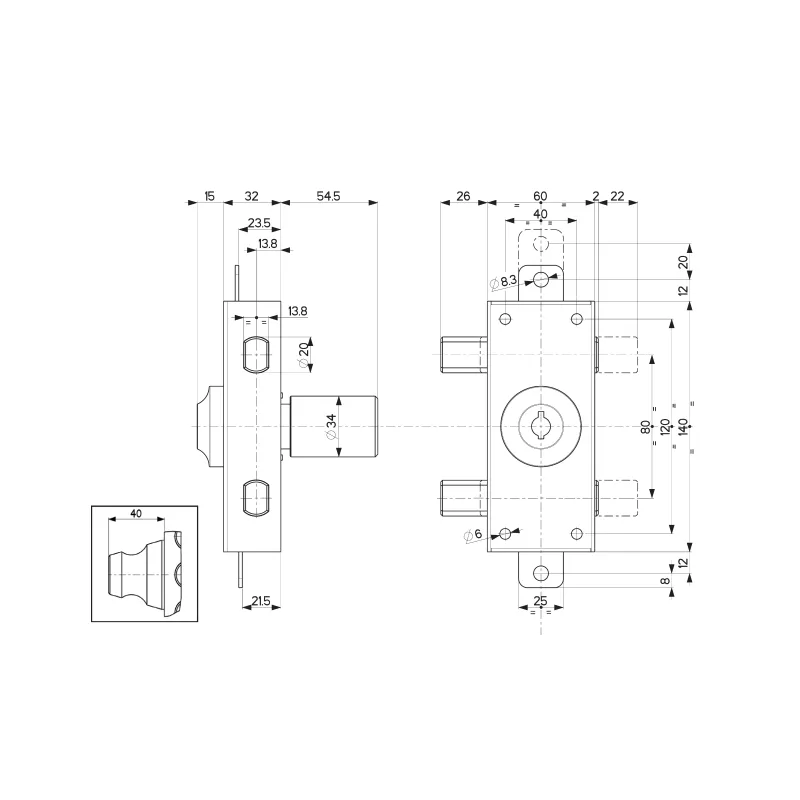

| Box dimensions | 60 x 140 x 32 mm |
| Type of Pose
|
Wall mounted |
| Axle
|
60 mm |
| Type of deadbolt
|
Sans pêne dormant |
| Latch bolt | Sans pêne demi-tour |
| opening type
|
1 key input - Half cylinder |
| Number of keys | 3 |
