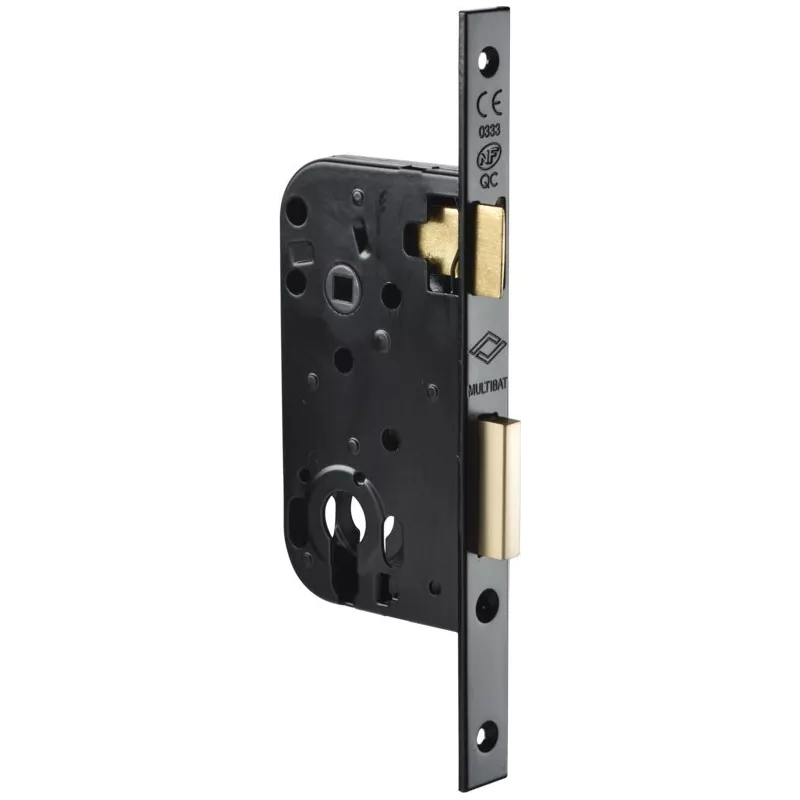

JPM Multibat Lock Deadbolt + 1/2 turn
- 40/50 mm axle
- Center distance: 70 mm
- Finish: Black epoxy paint
- Square: 7 mm
- 1/2 turn reversible square bolt
- Bolt projection ½ turn: 11 mm
- Deadbolt stroke: 20 mm
- 2-turn operation
- Reversible Right / Left
| Category | Single point recessed lock |
| Brand | JPM |
| Manufacturer reference | 218300 - 210000 |
| Number of points | 1 Point |
| Type of joinery | Wood |
| Box dimensions | 136 mm x (L) 77mm x (E) 14 mm |
| Type of Pose
|
Recessed |
| Headrest dimensions
|
230 x 20 x 3 mm |
| Axle
|
50 mm, 40 mm |
| Lock center distance
|
70 mm |
| Fixing center distance
|
200 mm |
| Fouillot square
|
7 mm |
| Type of deadbolt
|
1 rectangular bolt |
| Latch bolt | cambered |
| Type of locking hole
|
European cylinder hole |
