Dierre Asso 5 PDU armored door

• Burglar-resistant level 1 (5 minutes) No. MP 010046
• Fire/Smoke protection: 1/2 hour / 1/2 hour PV No. 01-V-103
• Acoustic 40 dBRw with standard frame
• Acoustic 38 dBRw with other frame types
• Thermal 2.2 Wm2 °C
• A2P** approved lock No. 35.246
• BP1 approved Door unit (optional) No. 06.15
• Class 2 European standard ENV 1627-1

Frame and Sub-frame

• 20/10 steel, brown polyester varnish, oven-baked
• Renovation or new version

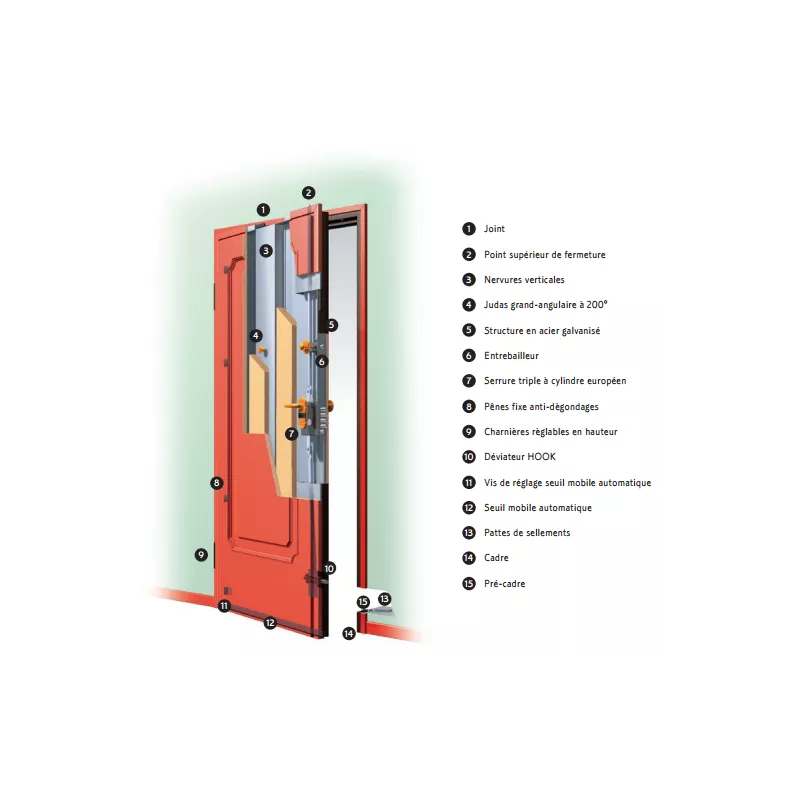

Leaf

• 63mm thickness overlap
• 1 side 10/10 steel, 10/10 omega reinforcements, high-density rock wool filling
• Veneer panel finish on both sides Matte varnished or paintable wood (walnut, mahogany, etc.), excluding panel and reveal cladding.
• 2 height-adjustable ball-bearing hinges
• 4 anti-theft pins

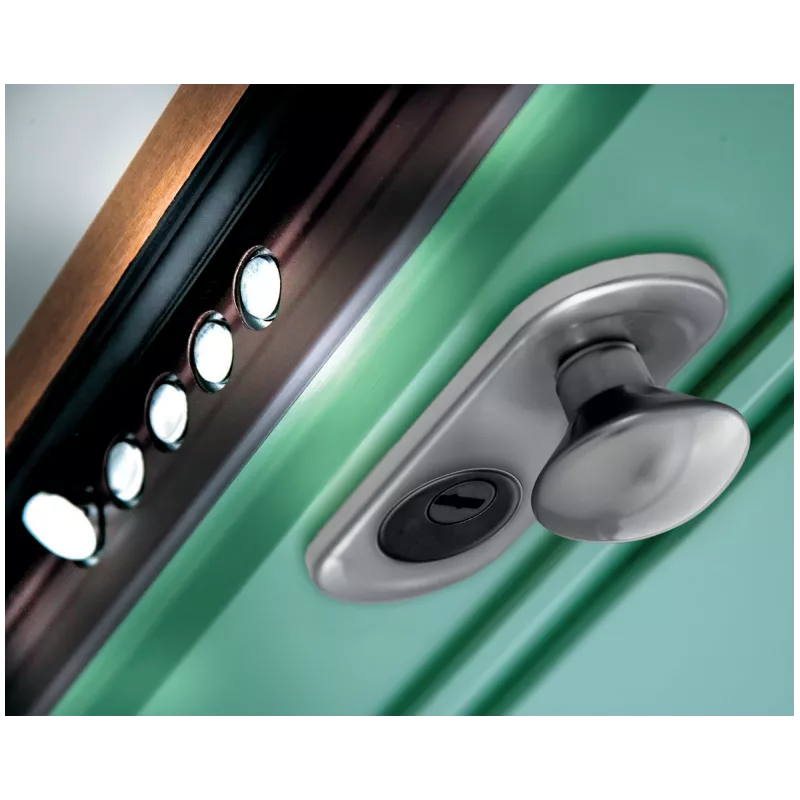

• Atra A2P** lock designed to accept a European cylinder, supplied with a construction site key
• Locking with a top point, 4 central points plus 1 half-turn, and a side bottom point.
• Hook diverter

Restrictor door

• Optical peephole
• Automatic baseboard
• New Greta bronze fittings
• Available in class 3 ENV 1627-1 (optional)
