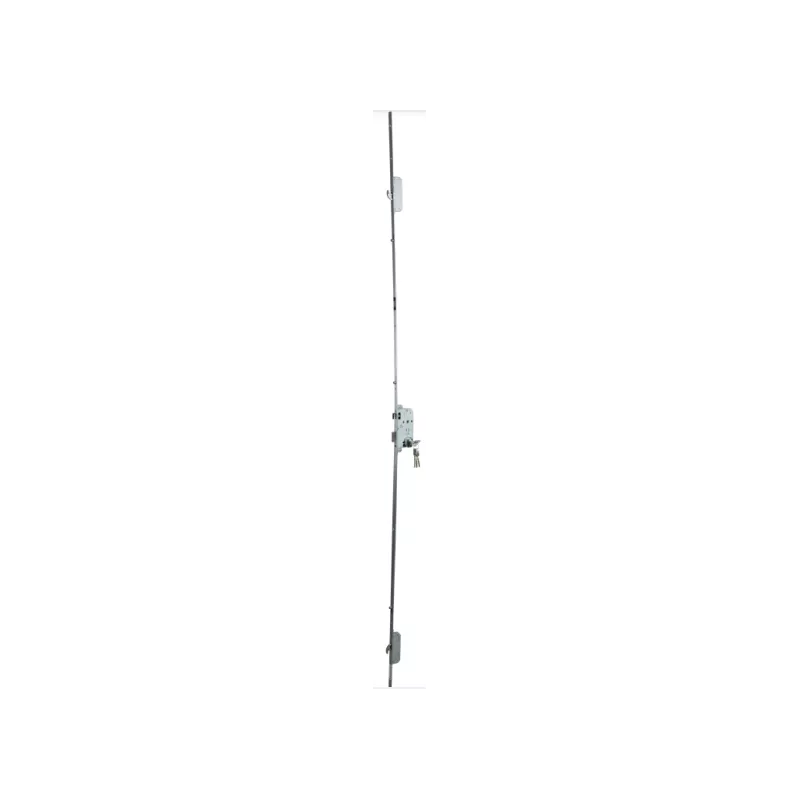

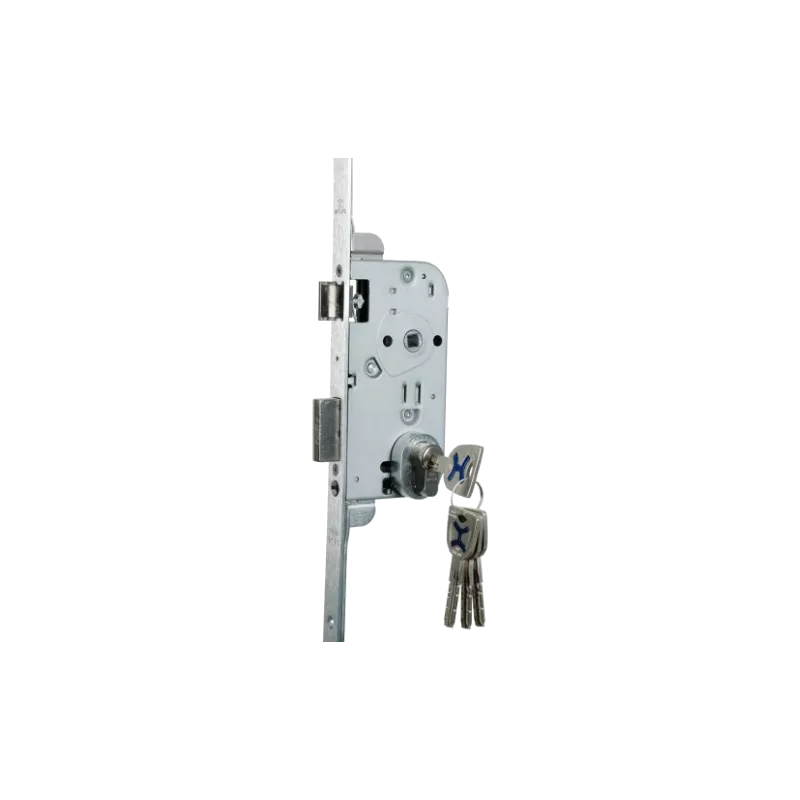

Bricard 9171 7-point lift lock
Manual lift lock with a high level of security

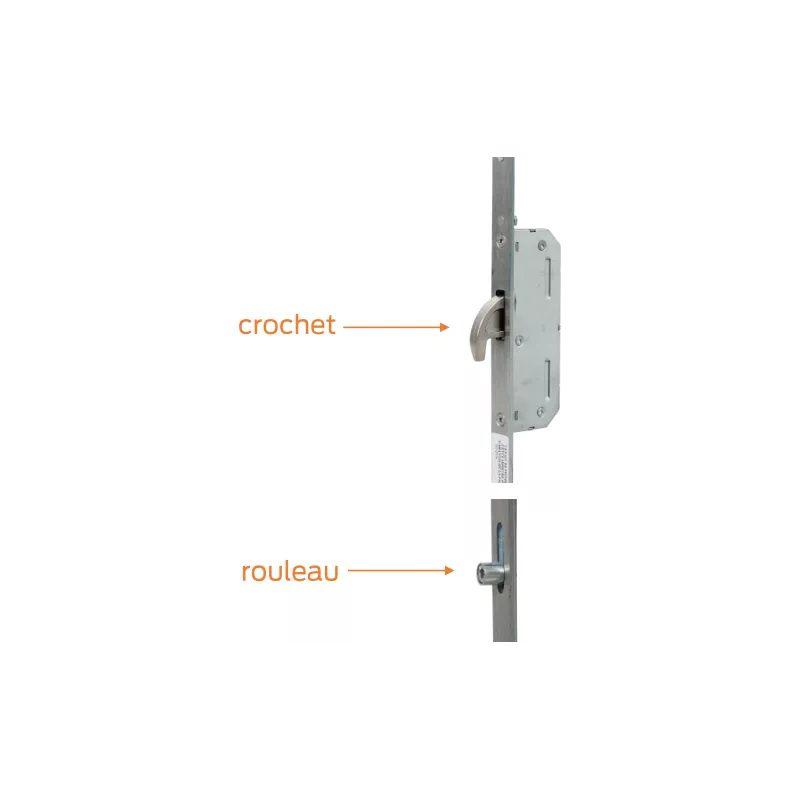

- 7 locking points: 1 rectangular middle bolt, 1 half-turn bolt, 3 rollers and 2 hooks Axis 50 mm, centre distance 70 mm
- Reversible latch bolt without tools, 11 mm projection
- Holes for rose screws on the main locker
My order
Buy in our shop
A2Pro
149, Avenue Henri Barbusse
93700 Drancy
Features
Manual lift lock with a high level of security
7 locking points: 1 rectangular middle bolt, 1 half-turn bolt, 3 rollers and 2 hooks Axis 50 mm, centre distance 70 mm
Corrosion resistance 96 hours in a satin fog laboratory
Reversible latch bolt without tools, 11 mm projection
Holes for rose screws on the main case
Finish
Electrogalvanised boxes
Zinc-plated faceplate and bolts
Accessories
Supplied with fixing screws, installation instructions and A2P certificate
Product advantages
High resistance to burglary
Meets A2P certification requirements
7 locking points
Range
3-box lock with :
1 rectangular bolt
1 latch bolt 1/2 turn
3 rollers
2 hooks
Faceplate dimensions: 2150 mm x18 mm
Compatible with BRICARD armoured handles and handles without return spring
Compatible with all BRICARD A2P* certified cylinders: Octal, Serial, Serial XP and Dual XP 2 (with standard size security protector directly crimped on the cylinder)
- Bricard
- 9171490100
- 9171
- 2150mm x 18mm
- 1 star
