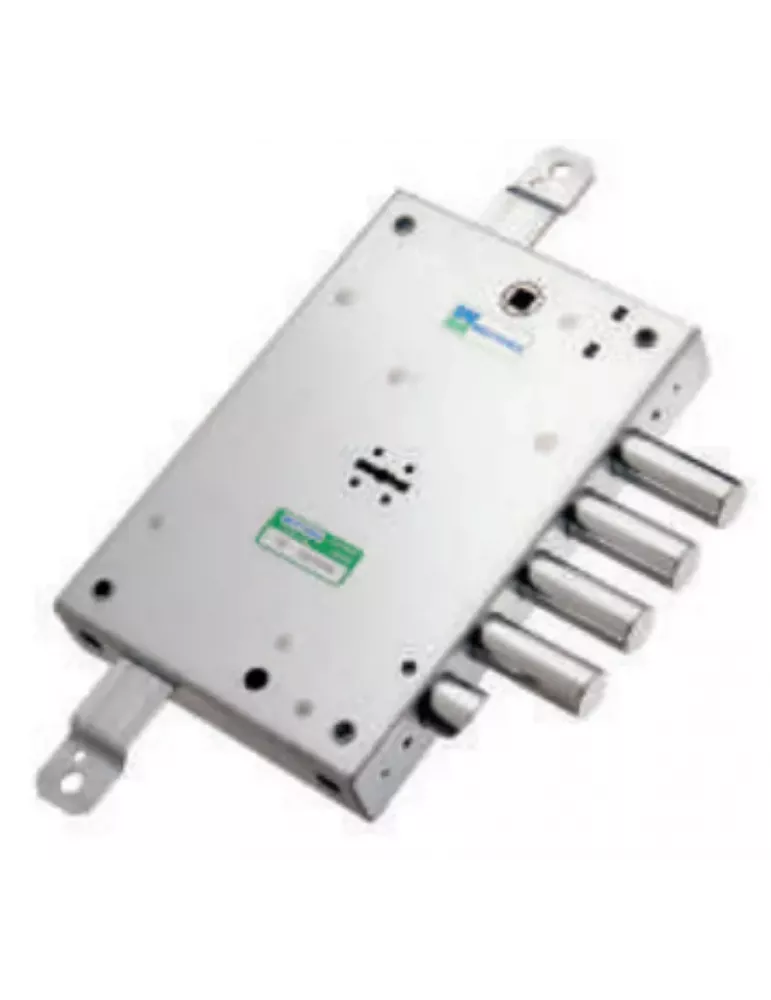

Mottura 52.571 Lock – 3-point surface-mounted, reversible latch
184632
Mottura 52.571 3-point surface-mounted lock with reversible latchbolt and 4 round bolts Ø18 mm.
- Type: 3 locking points
- Mounting: surface-mounted
- Reversible latchbolt (left/right)
- 4 round bolts Ø18 mm – 40 mm throw
- Central + top and bottom locking via Ø18 mm rods
- Backset: 63 mm
- Key/handle spacing: 85 mm
- Bolt centre distance: 28 mm
- Supplied in 3 or 5 double-bit key versions (selectable)
- Delivered without optional accessories (see related products below)
Secure payment via BNP Axepta
Quick delivery and tracking link
14 days to return the product
Overview
The Mottura 52.571 is a 3-point surface-mounted lock featuring a reversible latchbolt for universal installation (left/right). With 4 central Ø18 mm bolts and upper/lower locking rods, it provides reinforced, smooth closure for wood or metal doors. Part of the Mottura 52 series, it combines strength and precision.
Technical features
- Reference: 52.571
- Type: 3-point surface-mounted lock
- Latchbolt: reversible
- Bolts: 4 round Ø18 mm – 40 mm throw
- Locking: central + top/bottom by Ø18 mm rods
- Backset: 63 mm
- Key/handle spacing: 85 mm
- Bolt centre distance: 28 mm
- Finish: nickel-plated
- Supplied in 3 or 5 double-bit key versions (selectable)
- Optional accessories: available in related products
Contents
- 1 complete Mottura 52.571 lock
- 3 or 5 double-bit keys (depending on version)
- Internal and external escutcheons (95324 / 95323)

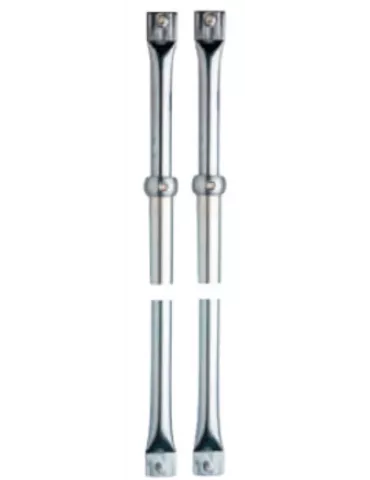

- Tringle rods not included
- Installation manual
- Mottura
- 184632
- 52 series
- 3 Points
- Metallic
- Recessed
- 8 mm
- 4 round bolts + 1 half-turn
- réversible
- double bit
- 3
- 28 mm
- 40 mm
- L136 X H206
