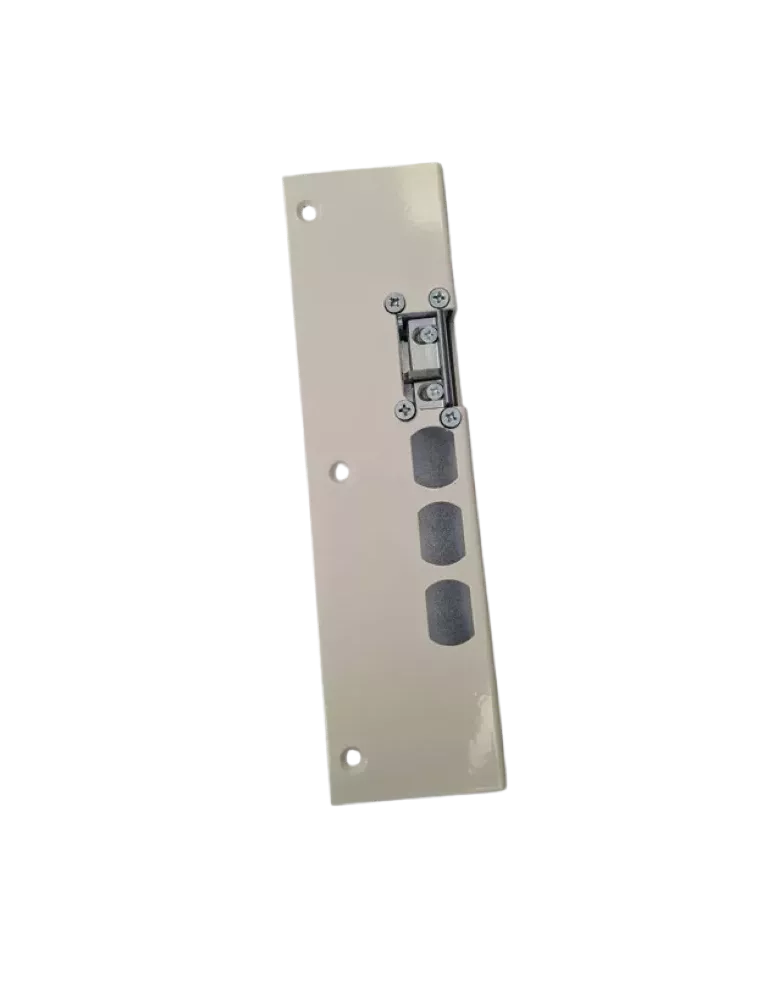

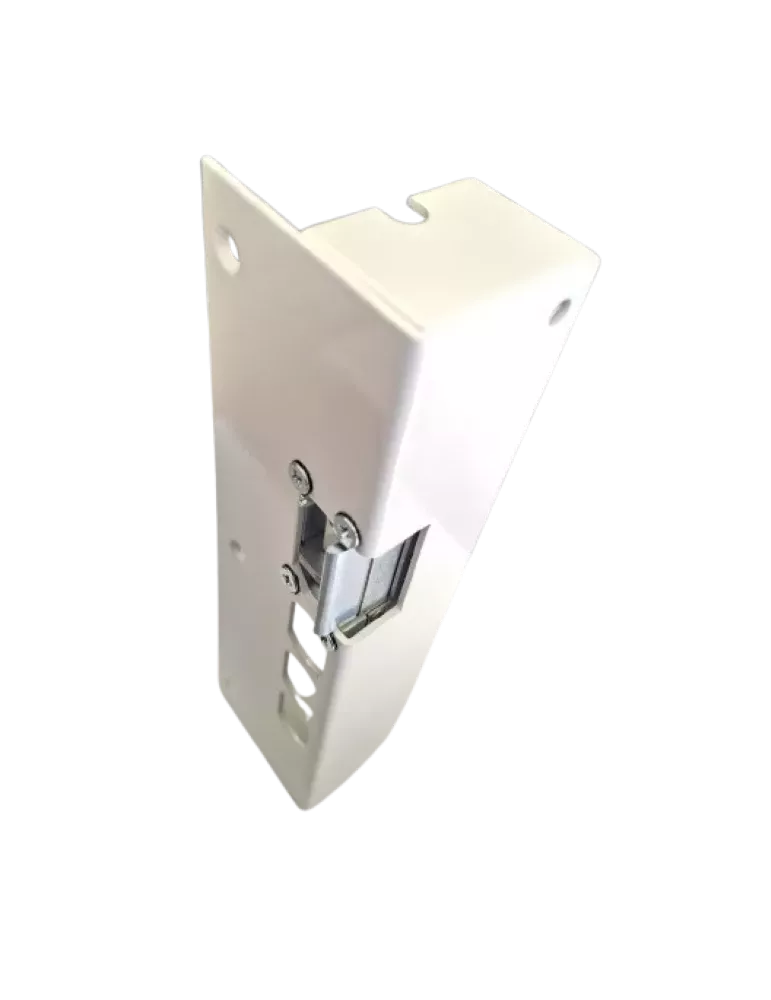

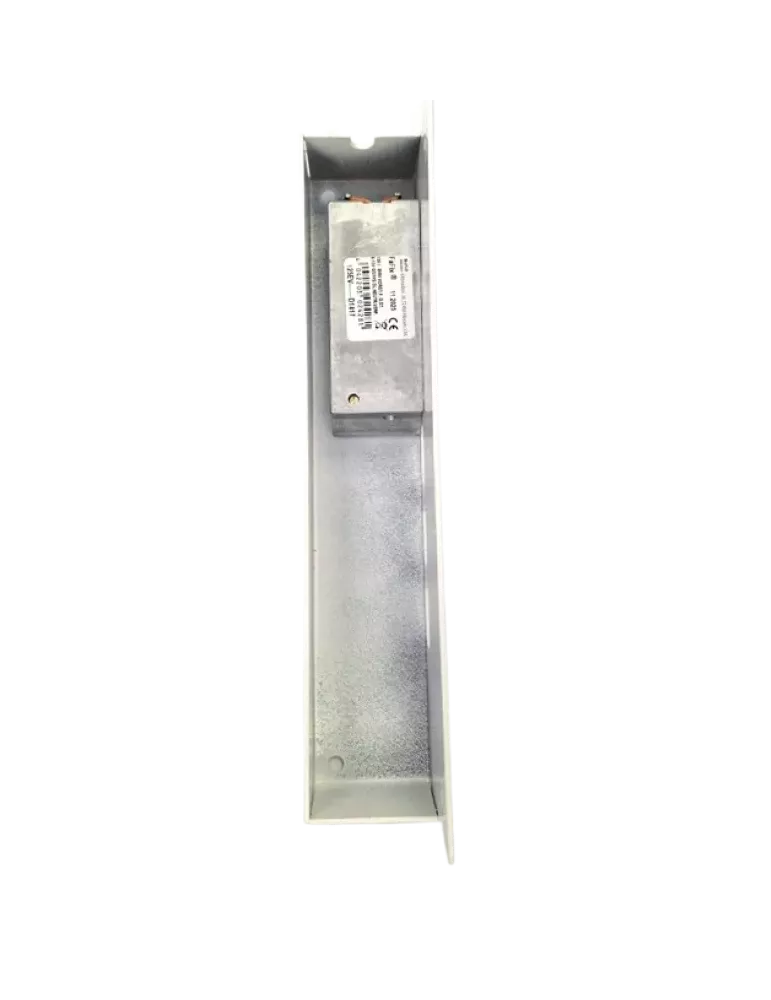

MOTTURA 94084 Surface Mounted Electric Strike for 30.448 / 30.468 Locks

MOTTURA 94084 Electric Strike for 30.448 / 30.468 Surface Locks

The MOTTURA 94084 electric strike is the official accessory specifically designed to electrify MOTTURA 30.448 and 30.468 high security surface mounted multi-point locks. It enables remote door opening without replacing the existing mechanical lock.

Function and usage

The strike installs on the surface of the door frame, replacing the original mechanical strike. Upon electrical impulse (typically triggered by an intercom, push button, keypad or access control system), the bolt releases and allows the door to open. The mechanism then automatically returns to its locked position.

Technical specifications

• Power supply: 12V AC (alternating current)
• Installation type: surface mounted (non-recessed)
• Compatibility: Mottura 30.448 and 30.468 locks only
• Built-in locking lever for temporary triggering
• Adjustable reference mark for precise alignment
• Automatic anti-closing device
• Manual release mode for free passage

Safety and free passage

The manual release mode allows switching to free passage in case of emergency or power outage. This function ensures rapid evacuation and complies with fire safety standards. The strike can also be temporarily kept open to facilitate regular traffic (deliveries, visitors).

Available versions

• 94084VS : brown varnish finish, left hand
• 94084VD : brown varnish finish, right hand
• 94084AS : white finish, left hand
• 94084AD : white finish, right hand

Installation requirements

This strike requires a 12V AC power supply via a suitable transformer (not included). Installation recommended by a professional or by users with low voltage electrical skills. Wiring according to the manufacturer's diagram.
