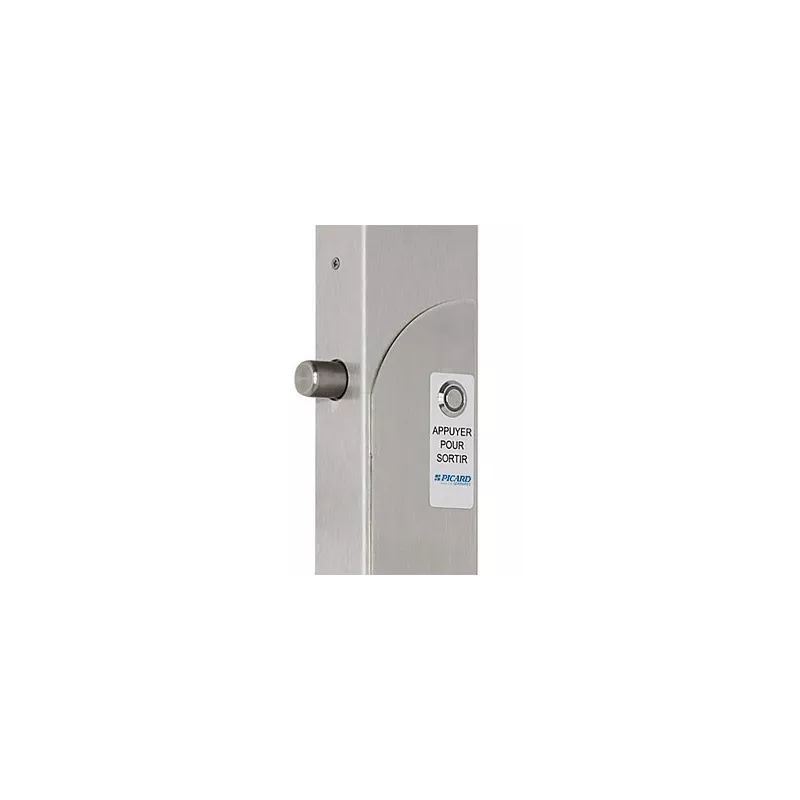

Surface-mounted lock with electric motorised locking
- Quick opening of the bolts
- Manual opening with key possible
- Reversible lock: right/left and pull/push
- Sold without cylinder
3 475,00 €
Product does not exist with this combination
Buy in our shop

A2Pro
149, Avenue Henri Barbusse
93700 Drancy
Availability: Within 4 days
Why choose the TELCOM®4?
FOR ITS COMFORT
- Quiet
- Bolts guided in bronze blocks
- Unlocking by key or knob
- Remote door opening
- Electric operation of the 4 bolts and the latch
FOR ITS RESISTANCE
- Motorised electric locking
- Intensive use
- 4 stainless steel bolts Ø22 stroke 25mm
- 1 latch bolt Ø18, 14mm exit, adjustable +5 mm
- Electrically controlled locking of the lever handle.
- Integrated alarm buzzer
- Equips Technica CR4 and CR5 doors
OPTIONS
- Power supply 220v
- 12v-5A
- VTX cylinder
PRODUCT ADVANTAGES
- Controlled free exit: pressing the lever handle unlocks the entire lock.
- Reversible lock right/left - pull/push

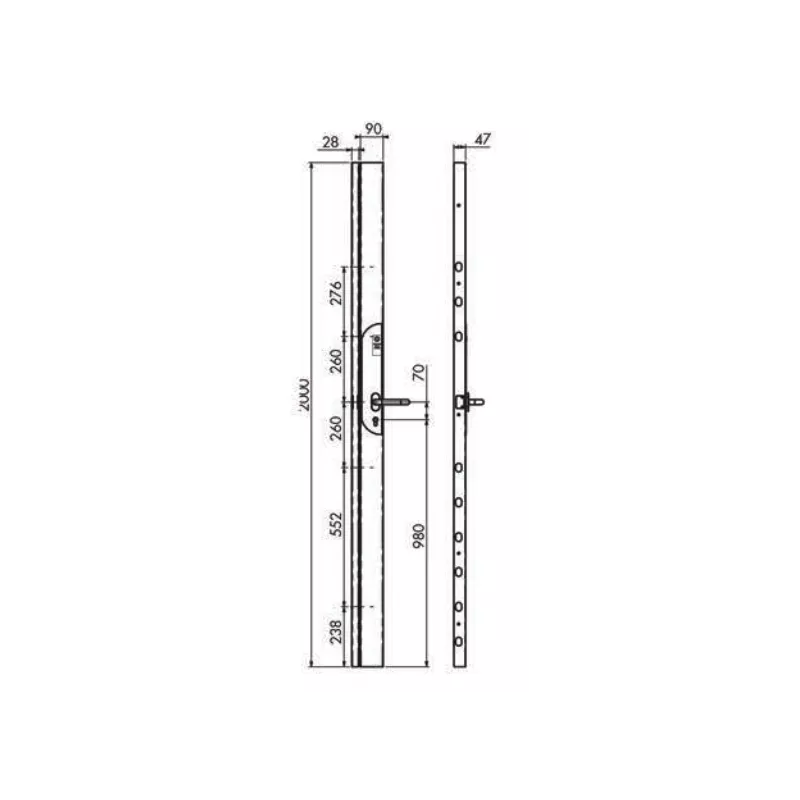

- Narrow dimensions: 90mm axis at 60
- Adaptable without cutting (cover height 2m)
- Possibility of management by any type of access control: badge, biometrics...
- Power supply from 11 to 56V DC
Category | Electronic locks |
Brand | Picard |
Manufacturer reference | 2081 S 0001 |
Range | Telcom 4 |
Number of points | 4 Points |
Type of joinery | Wood, Metallic |
Type of Pose
|
Wall mounted |
Axle
|
50 mm |
Lock center distance
|
70 mm |
Cylinder profile | européen |
Adaptation door | Standard |
Reviews : 0
