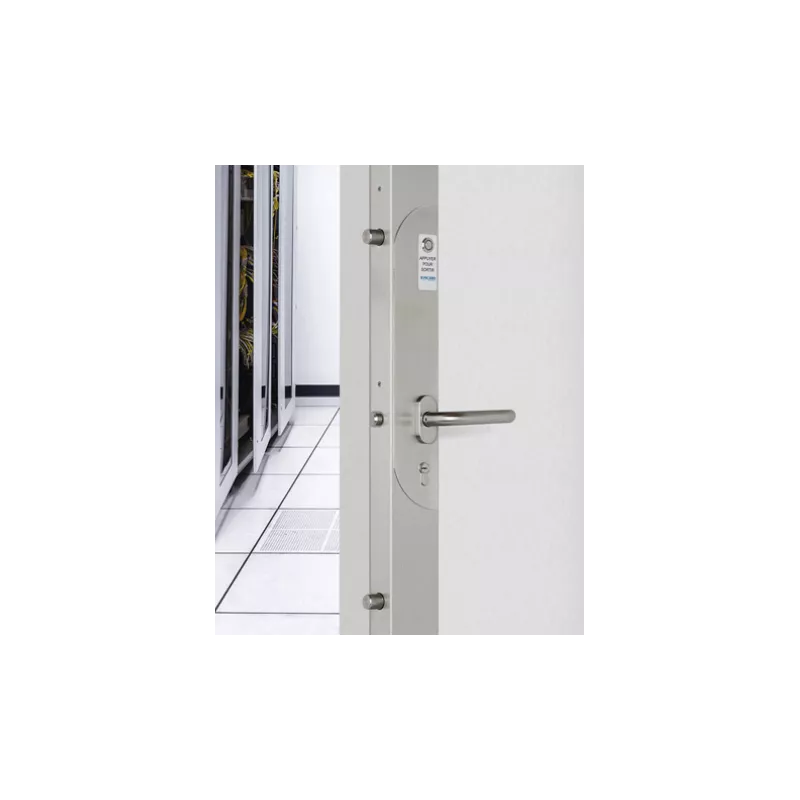

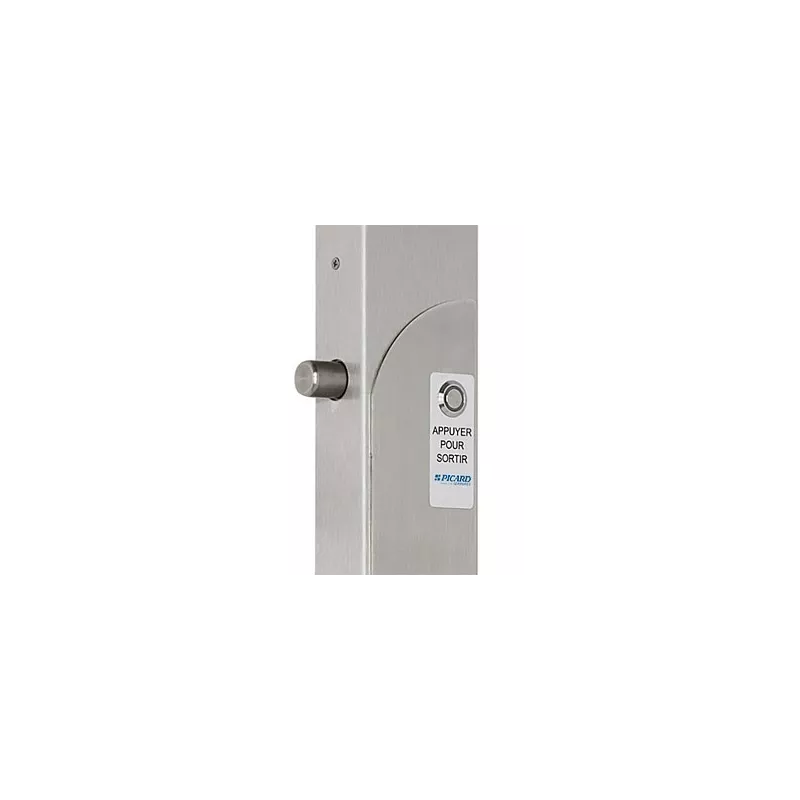

Electric lock PICARD Telcom 4

Why choose the TELCOM®4?

FOR ITS COMFORT

• Quiet
• Bolts guided in bronze blocks
• Unlocking by key or knob
• Remote door opening
• Electric operation of the 4 bolts and the latch

FOR ITS RESISTANCE

• Motorised electric locking
• Intensive use
• 4 stainless steel bolts Ø22 stroke 25mm
• 1 latch bolt Ø18, 14mm exit, adjustable +5 mm
• Electrically controlled locking of the lever handle.
• Integrated alarm buzzer
• Equips Technica CR4 and CR5 doors

OPTIONS

• Power supply 220v
• 12v-5A
• VTX cylinder

PRODUCT ADVANTAGES

• Controlled free exit: pressing the lever handle unlocks the entire lock.
• Reversible lock right/left - pull/push

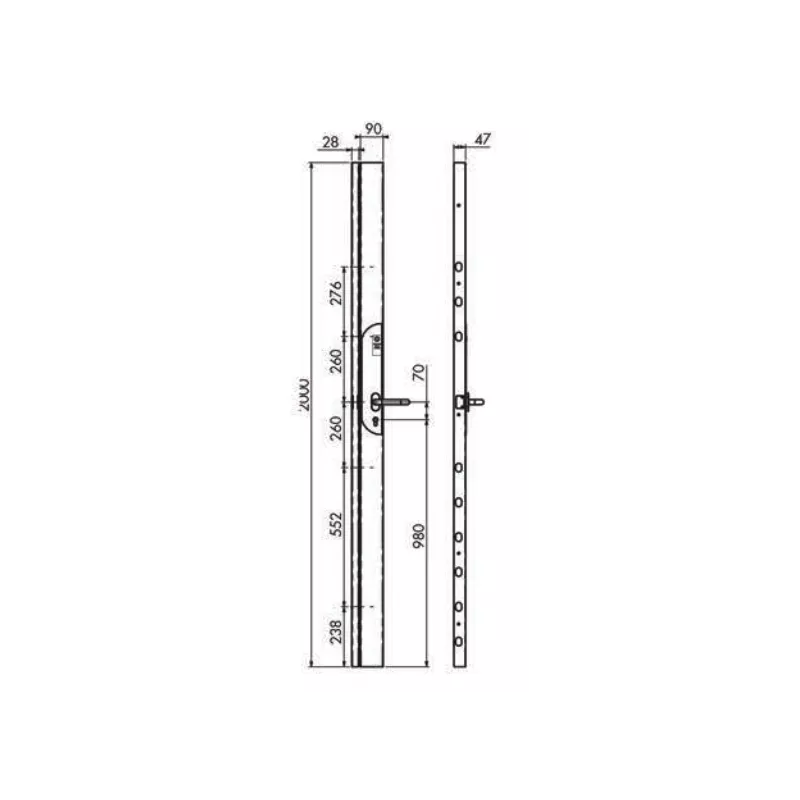

• Narrow dimensions: 90mm axis at 60
• Adaptable without cutting (cover height 2m)
• Possibility of management by any type of access control: badge, biometrics...
• Power supply from 11 to 56V DC
