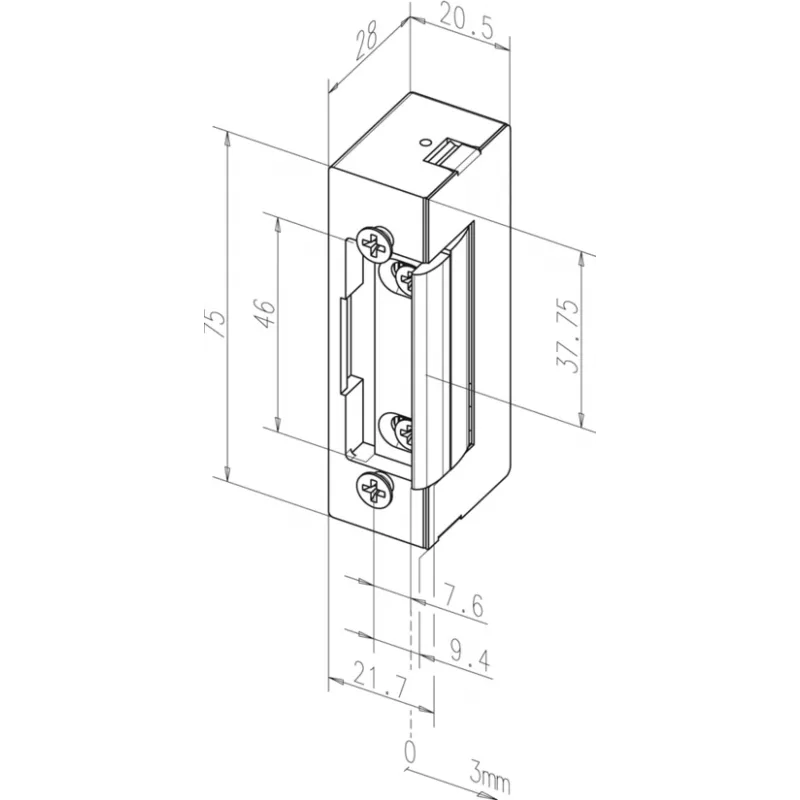

EFF SPE7 economic strike

Description

• Symmetrical strike with FaFix half-turn adjustment system (4mm)
• 1/2 turn steel / brass shutter
• 3500N burglary resistance
• Symmetrical strike body
• Optional depending on model: manual unlocking,
• Vertical and horizontal installation possible
• Available in an integrated stationary contact version
• Operating voltage 10 / 24V in emission (+/- 15%)
• Permanent supply voltage on 11 / 13Vdc
• Series 05 protection diode (bipolar on SPE71 and SPE71RR) except on SPE71E and SPE74 / SPE74E
• Optional on emission and breaking model: RR (signaling contact)
• Without headrest

Specificities

• These products constitute the special effeff range and are derived from the two standard models, the mechanical base of the 7 series and the electronic base of the 118
• This product offers the particularity of a symmetrical strike body and a high half-turn adjustment (4mm)

Applications:

• The EFF keeps model SPE7 is to be fitted into wooden, steel, aluminum, PVC frames, etc.
