FERCO Trimatic adjustable mortice lock

Ferco
G-46522-00-0-1

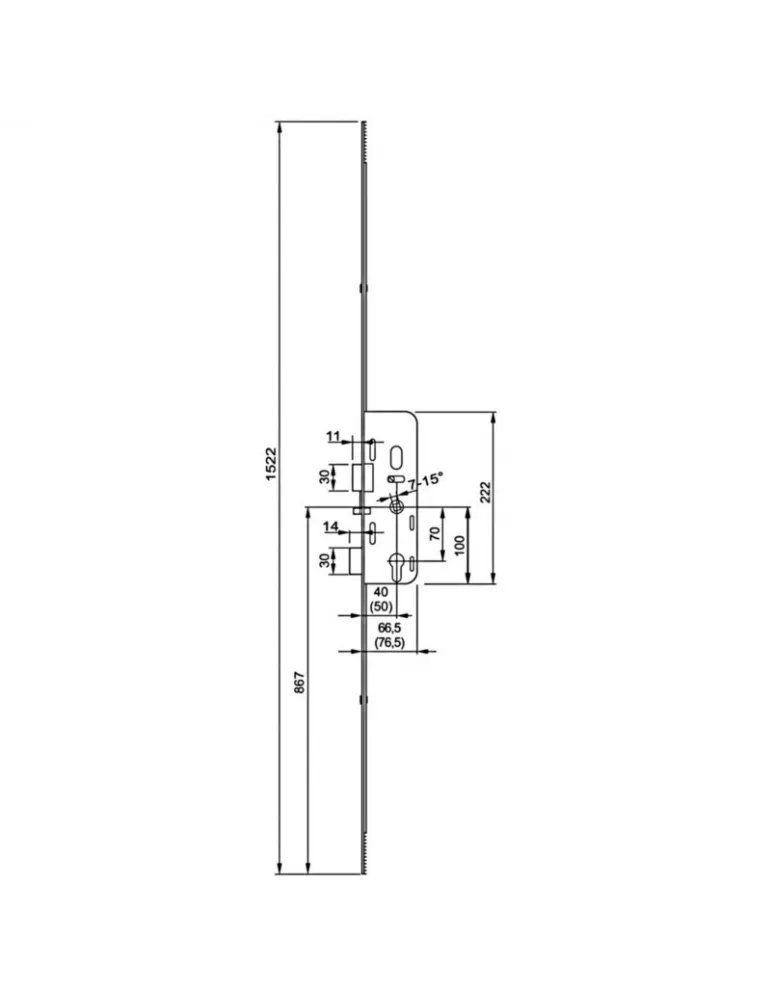

  • 70 mm centre distance
  • 7 mm square at 15° angle
  • 18 mm faceplate
  • Central casing thickness 14 mm
  • Automatic locking of the 2 rollers on closing (R2)
  • Reversible right/left
  • Can be extended to 2150 mm by adding extensions to set the desired height.

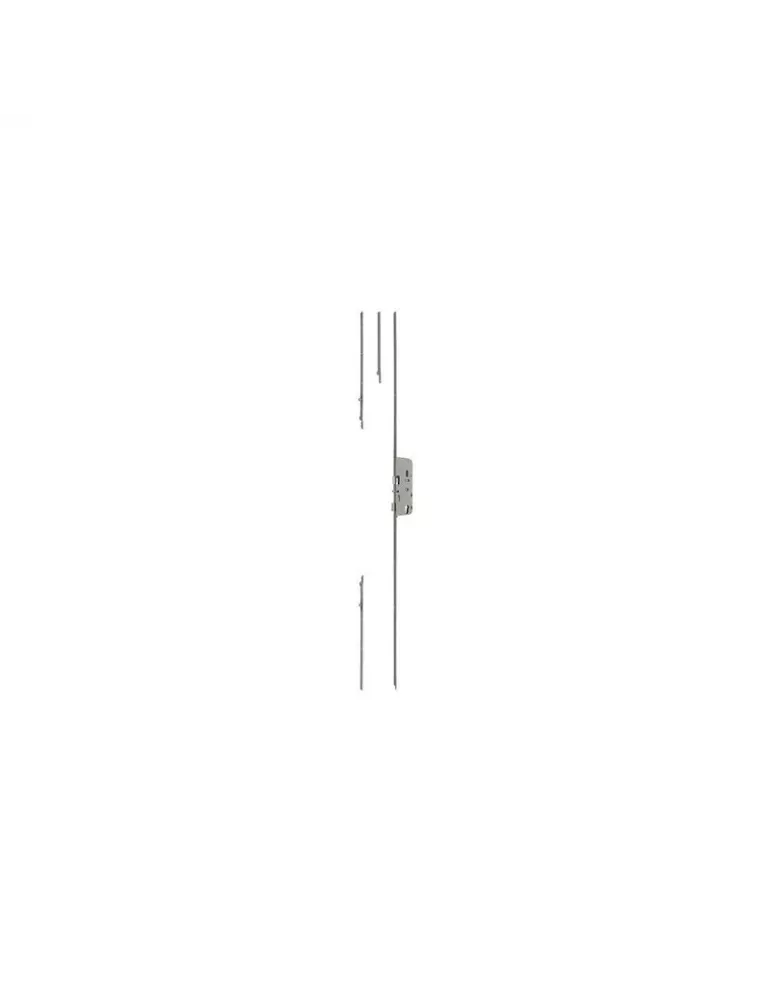

Kit includes :

  •  1 TRIMATIC espagnolette lock: Length 1522 mm (D 1045 mm)
  •  2 x 423 mm extensions / 1 roller
  •  1 250 mm extension

My order

Amount of options
Price with options
Total
Quantity

Buy in our shop

A2Pro

149, Avenue Henri Barbusse

93700 Drancy

Availability: In stock
  Secure payment via BNP Axepta
  Quick delivery and tracking link
  14 days to return the product
Description

The TRIMATIC adjustable mortise lock is designed to provide a flexible and secure locking solution. Available with different spindle options, this lock can be adapted to a wide range of doors, ensuring a personalised and efficient installation. A notable feature of this lock is the automatic locking of the rollers on closing, which significantly enhances security. The mechanism requires lever-handle release on the outside, effectively preventing unauthorised access. What's more, the ability to install the espagnolette reversibly, on the right or left, adds to its versatility and practicality.

The TRIMATIC Ferco mortice lock is also distinguished by its adjustable kit, which allows the height of the lock to be adjusted according to the specific needs of the installation. This kit, consisting of extensions and an extension piece, makes it much easier to adapt the lock to different door configurations. This flexibility, combined with its robustness and advanced functionality, makes the lock particularly suitable for a variety of applications, combining security, adaptability and convenience in an effective locking solution.

Product Details
  • Ferco
  • G-46522-00-0-1
  • Recessed
  • 40 mm
    50 mm
  • 70 mm
  • 7 mm
