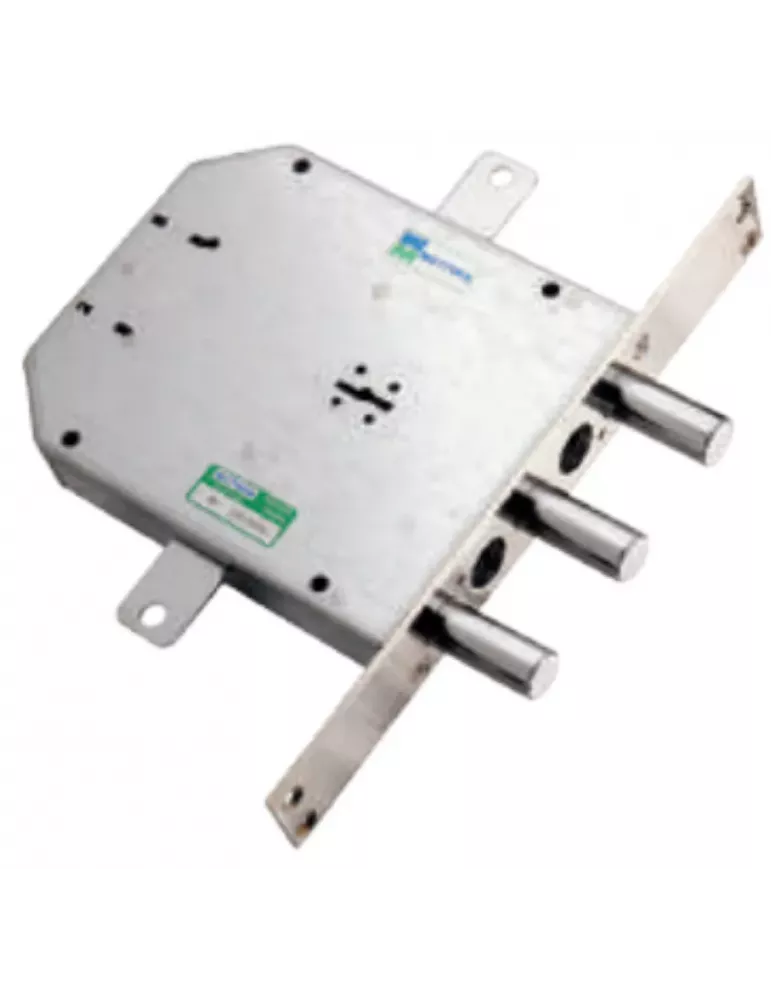

Mottura Mortise Lock 3-Point 50.738 – Lateral Faceplate – No Latchbolt – 3 Bolts Ø18 mm

• The Mottura 50.738 is a high-security 3-point mortise lock designed for key-only operation, without handle spindle, and fitted with a lateral faceplate.
• It features 3 round bolts Ø18 mm spaced 50 mm apart, ensuring a precise and secure locking system.
• Ideal for Mottura armored doors requiring a system without latchbolt.
• The key length must be selected according to the door thickness:

• 40 mm: standard length
• 50 / 60 / 85 mm: choose according to your door thickness

Accessories not included: strike plates, rods and trims (to be ordered separately).
See complementary accessories above.

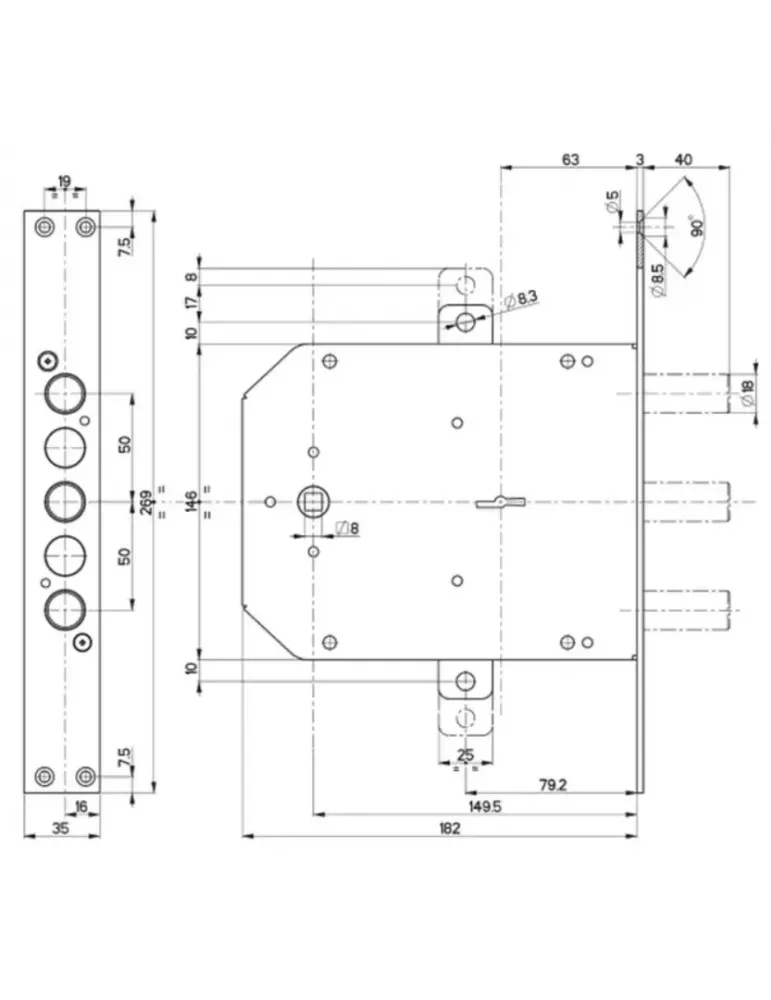

• Technical features

• Type: 3-point mortise lock without latchbolt
• Round bolts: 3 × Ø18 mm
• Bolt spacing: 50 mm
• Backset: 63 mm
• Bolt travel: 40 mm
• Rod travel: 17 mm
• Operation: key only
• Faceplate: lateral
• Finish: zinc-plated steel
• Opening: right / left (reversible)
• Use: armored door

• The lock is supplied with:

• 3 double-bitted keys 40 mm – brass finish
• Inner escutcheon – brass finish
• Outer escutcheon – brass finish

• Available options:

• 50 mm, 60 mm and 85 mm keys (to suit door thickness)
• Internal and external key guide bushings ref. 99101V
